Creating a project specification is an essential component of custom PCB design and Product design services. It paints a clear picture of the future product and its pricing. The document covers technical requirements, Mechanical requirement, deliverables, assumptions, Library Requirements, BOM and its pricing, and the tools and technologies that will be employed.

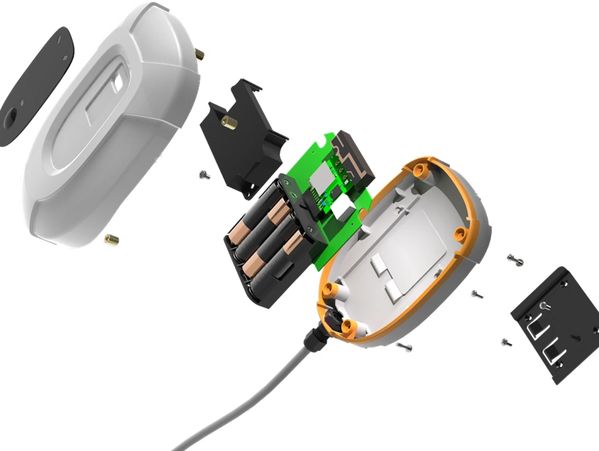

We can help our customer with custom enclosure/Housing design in MCAD software like SolidWorks and further analysis on Ansys as this are interlinked with the PCB size and components placement and Height. At this point only we required is your concept of the product.
Last not the least the prototype and production support by creating panel PCB while delivery or come back for additional help.

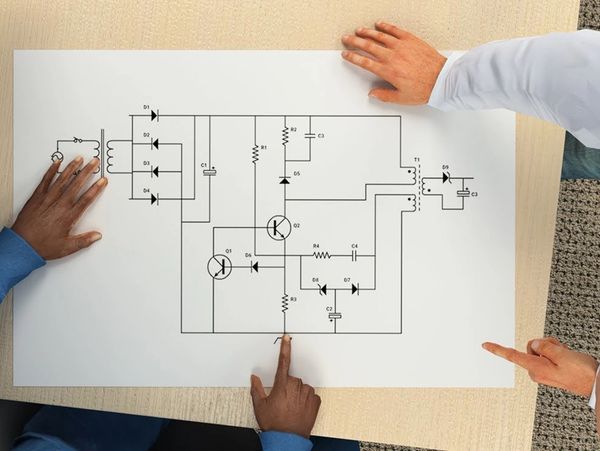

PCB board design always begins with creating a high-level block diagram of the device. When we gets a designed schematics, we start with the schematic entry. A schematic depicts the connections between integrated circuits (ICs) and discrete components. Our team defines library and designs the connectivity between various board pieces using professional CAD tools, such as Altium Designer.
We create a PCB layout, which is the physical representation of the schematic. To ensure the product's safety, we stack the needed number of layers and also recommend the enclosure size, as well as signal integrity and electrical limits. Proper routing and PCB Size is critical to reducing production costs. We provide DFM/DFA analysis to reduce PCB design changes, development costs, and time to market.
